XS9F-A Straight Cable Male Plug/IP65-Push-in quick locking-2 3 4 5pins
View XS Series series page →Engineering reply within 24 hours. Drawing confirmation recommended before release. Need CAD, plating, photos, or reports — include target OEM PN in the RFQ.
2 · Product data drawings

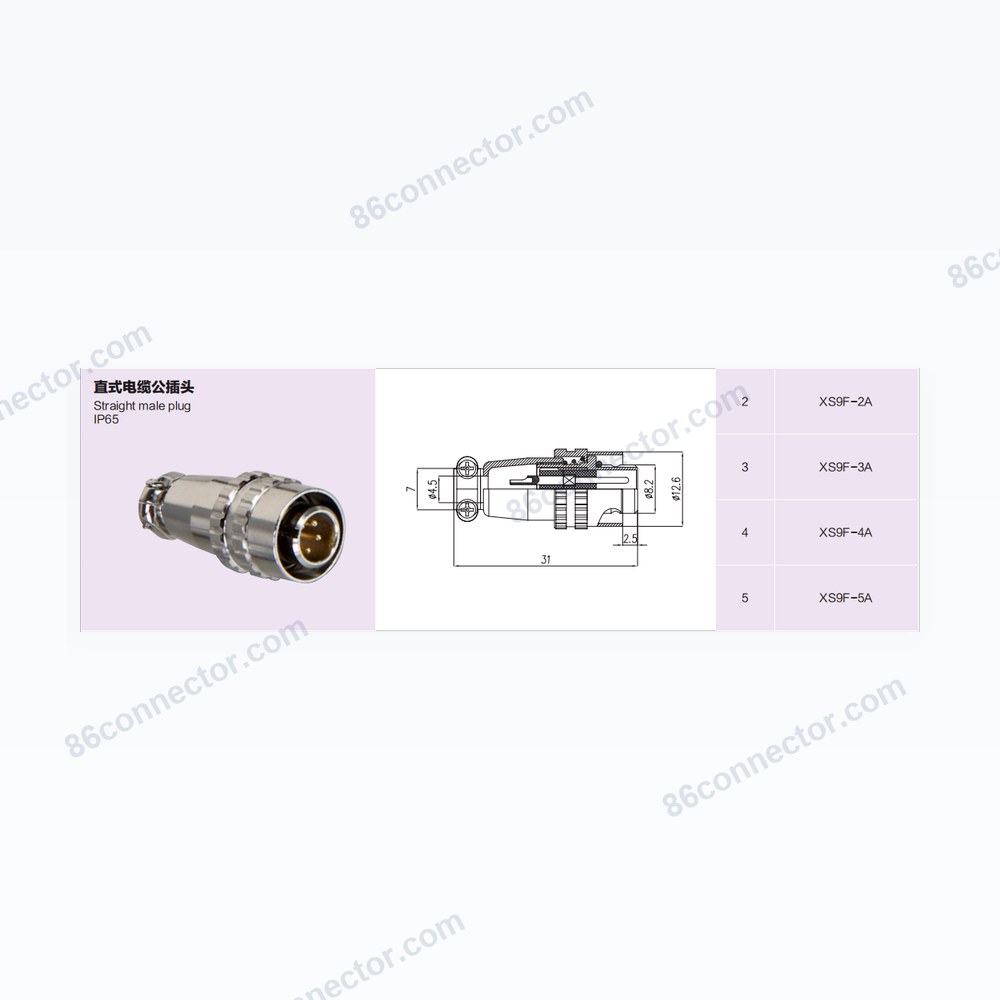

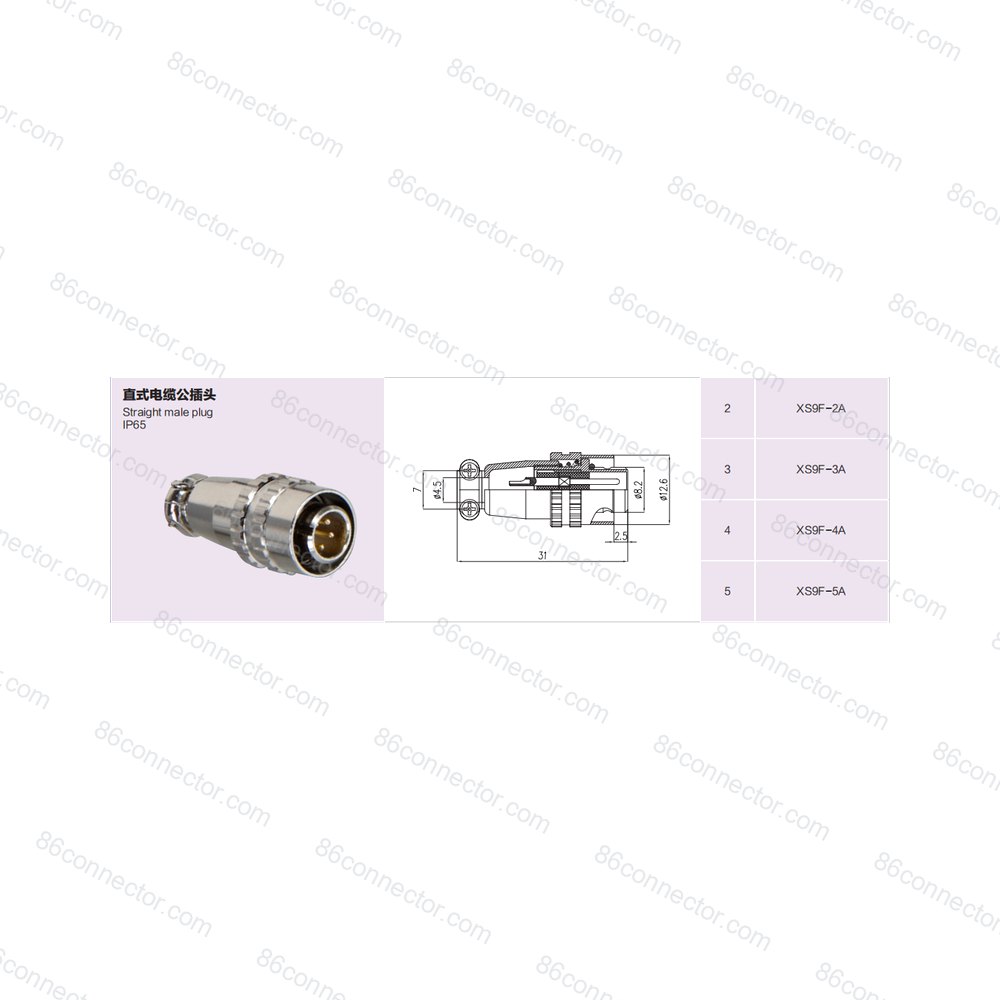

Outline, pinout, and dimension figures. Confirm against your released drawing before production order.
3 · Shipping & packaging
All packing and shipment are executed by 86connector Shenzhen warehouse (Shenzhen warehouse — unified dispatch). Shenyang plant is manufacturing capability background only when listed. Batch photos available on request with order confirmation.
| Lead time | 2–4 weeks typical (stock items faster) |
| MOQ | Standard pack — RFQ for small lots |
| Packaging | Export carton + bag/tray |
| Fulfillment | 86connector Shenzhen warehouse — unified export dispatch |
4 · Specifications & reports
Engineering parameters, downloadable documents, and quality reports. Missing files are fulfilled via RFQ within 24 hours — no fake downloads.

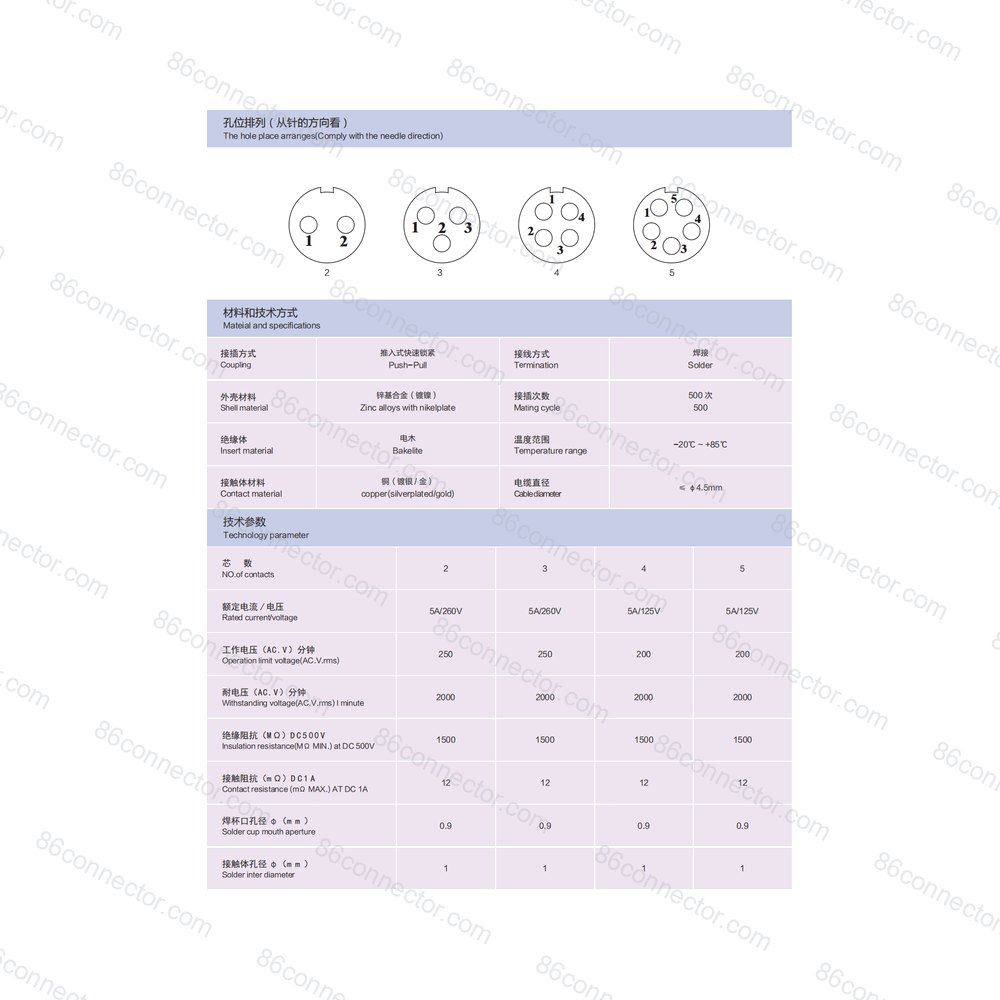

Technical specifications
Identity
| Part Number | XS9F-A |
| Series | XS Series |
| Fulfillment | 86connector Shenzhen warehouse — unified export dispatch |
Mechanical
| Product Type | Plug |
| Termination | Cable |
Electrical
| Contacts | 2-3-4-5 pin options |
| Gender | Male |
Environment
| IP Rating | IP65 |
Other
| Serial Number | Meaning of Code |
| Model | XS, XH |
| Number of contacts | 2, 3, 4, 5, 6, 7, 8, 9 |
| Lead Time | 2–4 weeks typical (stock items faster) |
| MOQ | Standard pack — RFQ for small lots |
| Packaging | Export carton + bag/tray |
Documents
Datasheets and drawings ship with the engineering pack for XS. Request below — typical reply within 24 hours.
Quality & test reports
Lot/type test and compliance files. Unpublished items return via RFQ.
