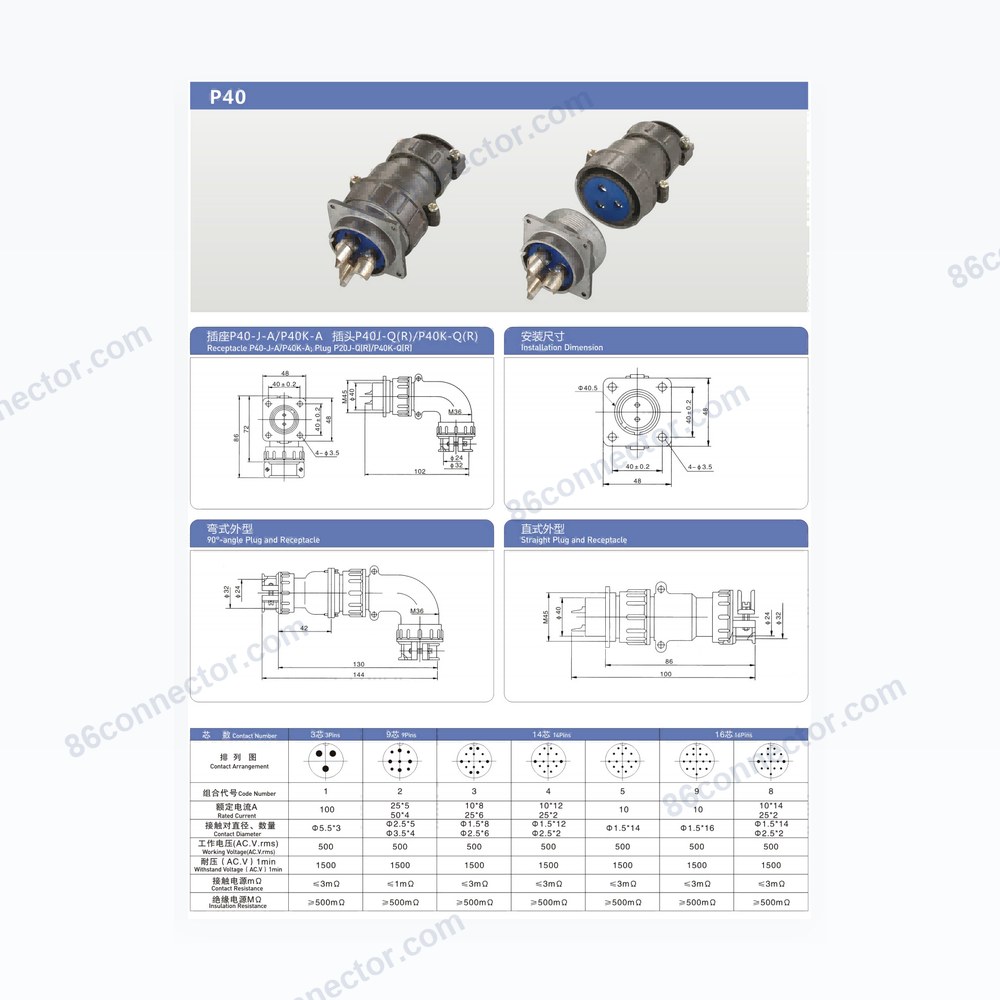

Watermarked studio view. Click image to enlarge. Use thumbs for product / drawing roles.
Product
P40
P40 Straight / Right-Angle Connector 3 Pos.,9 Pos.,14 Pos.,16 Pos. Aviation Plug Receptacle
View DAL/DAZ High-Power Series series page →Engineering reply within 24 hours. Drawing confirmation recommended before release. Need CAD, plating, photos, or reports — include target OEM PN in the RFQ.
2 · Product data drawings
Outline, pinout, and dimension figures. Confirm against your released drawing before production order.
3 · Shipping & packaging
All packing and shipment are executed by 86connector Shenzhen warehouse (Shenzhen warehouse — unified dispatch). Shenyang plant is manufacturing capability background only when listed. Batch photos available on request with order confirmation.
| Lead time | 3–6 weeks typical |
| MOQ | Series-dependent — RFQ |
| Packaging | Export carton, tray by polarity/series |
| Fulfillment | 86connector Shenzhen warehouse — unified export dispatch |
4 · Specifications & reports
Engineering parameters, downloadable documents, and quality reports. Missing files are fulfilled via RFQ within 24 hours — no fake downloads.
Technical specifications
Identity
| Part Number | P40 |
| Series | DAL/DAZ High-Power Series |
| Fulfillment | 86connector Shenzhen warehouse — unified export dispatch |
Mechanical
| Shell Size | 40 |
| Product Type | Receptacle |
Electrical
| Contacts | 3 contacts |
Other
| Lead Time | 3–6 weeks typical |
| MOQ | Series-dependent — RFQ |
| Packaging | Export carton, tray by polarity/series |
Documents
Datasheets and drawings ship with the engineering pack for P40. Request below — typical reply within 24 hours.
