M623F-D

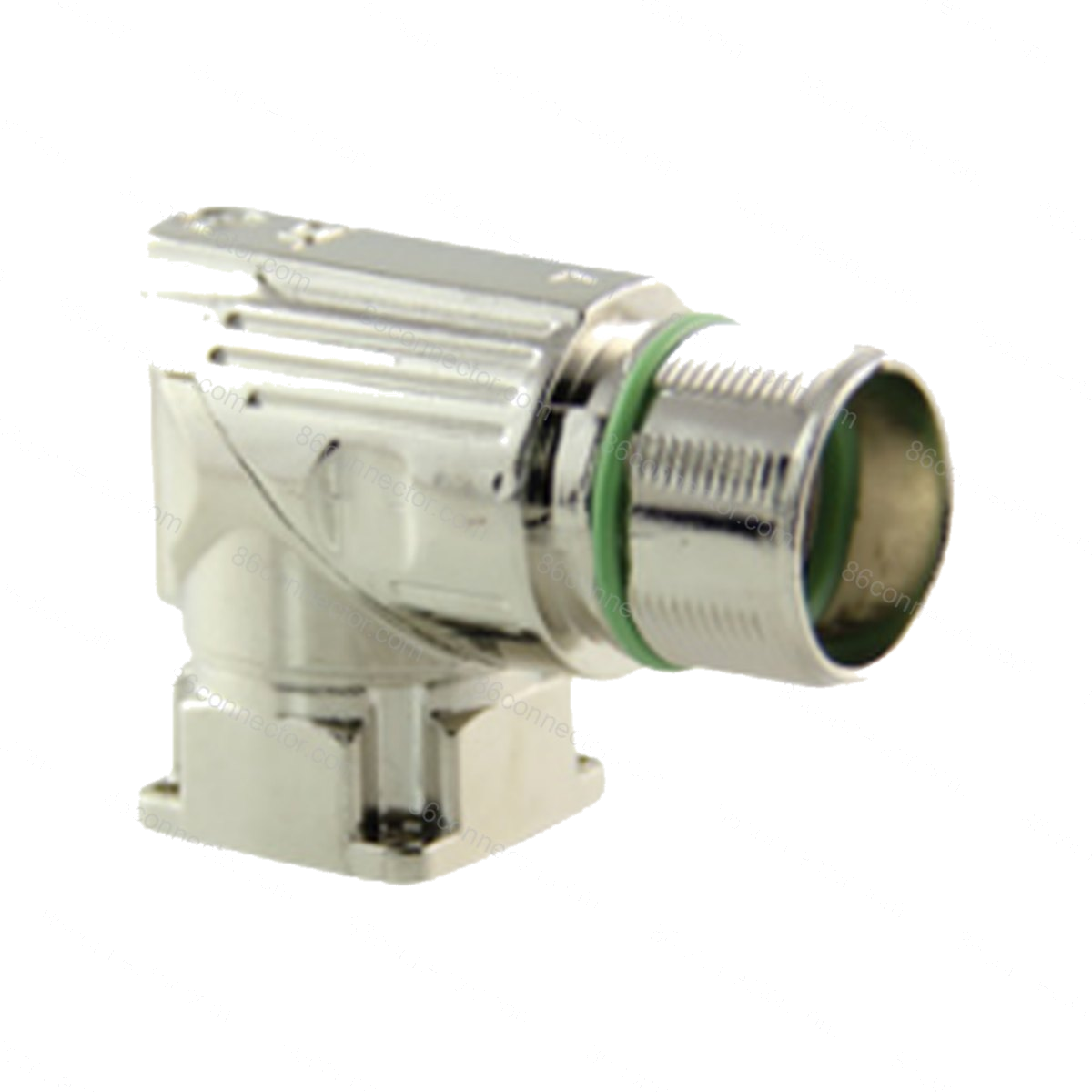

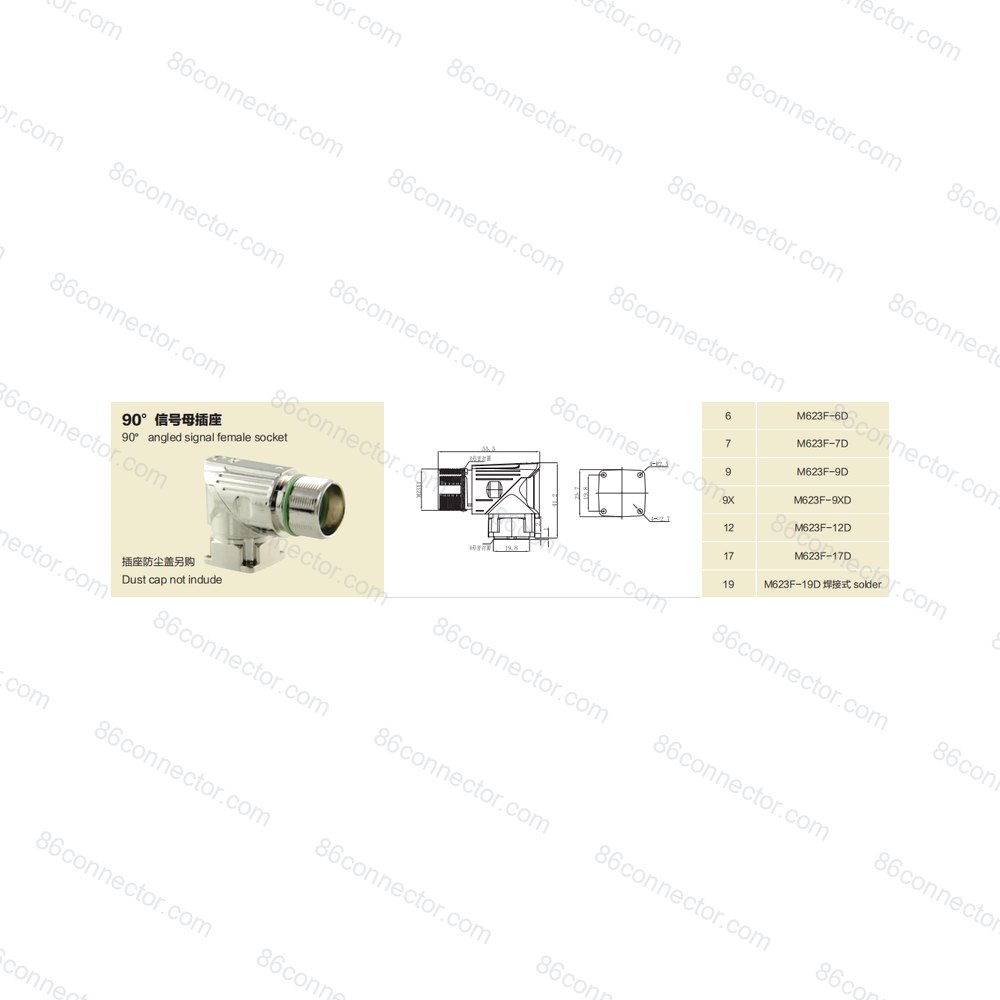

M623F-D 90° angled signal female socket-6pin-7pin-9pin-12pin-17pin-19pin
Browse Civil Circular Aviation Connectors →Engineering reply within 24 hours. Drawing confirmation recommended before release. Need CAD, plating, photos, or reports — include target OEM PN in the RFQ.
2 · Product data drawings
Engineering drawings ship with the 24-hour RFQ pack when not published.
No separate drawing pack online for this PN yet.
Request dimensions / pinout for M623F-D →3 · Shipping & packaging
All packing and shipment are executed by 86connector Shenzhen warehouse (Shenzhen warehouse — unified dispatch). Shenyang plant is manufacturing capability background only when listed. Batch photos available on request with order confirmation.
| Lead time | 2–4 weeks typical (stock items faster) |
| MOQ | Standard pack — RFQ for small lots |
| Packaging | Export carton + bag/tray |
| Fulfillment | 86connector Shenzhen warehouse — unified export dispatch |
4 · Specifications & reports
Engineering parameters, downloadable documents, and quality reports. Missing files are fulfilled via RFQ within 24 hours — no fake downloads.

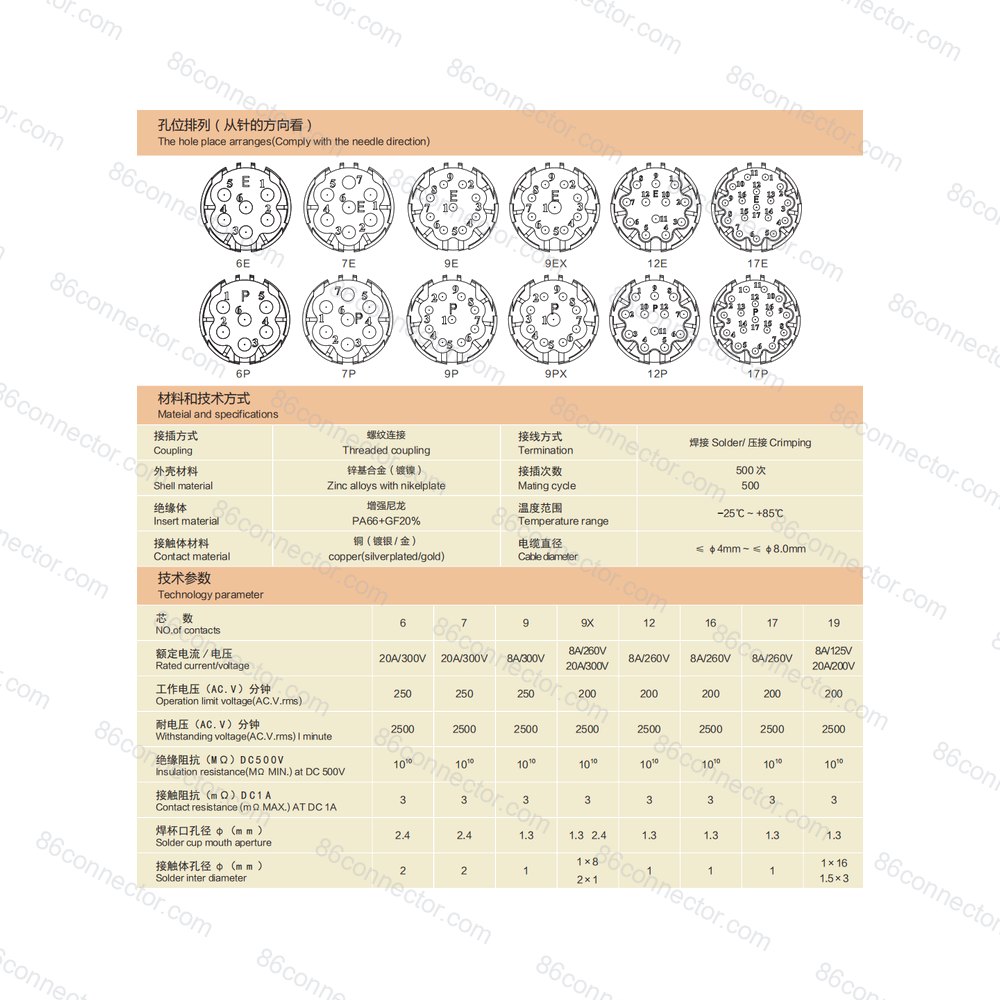

Technical specifications
Identity
| Part Number | M623F-D |
| Series | M23 Series |
| Fulfillment | 86connector Shenzhen warehouse — unified export dispatch |
Mechanical
| Product Type | Receptacle |
Electrical
| Contacts | 6 contacts |
| Gender | Female |
Other
| Lead Time | 2–4 weeks typical (stock items faster) |
| MOQ | Standard pack — RFQ for small lots |
| Packaging | Export carton + bag/tray |
