1 · Product photos
Watermarked studio view. Click image to enlarge. Use thumbs for product / drawing roles.
Product
M16-E

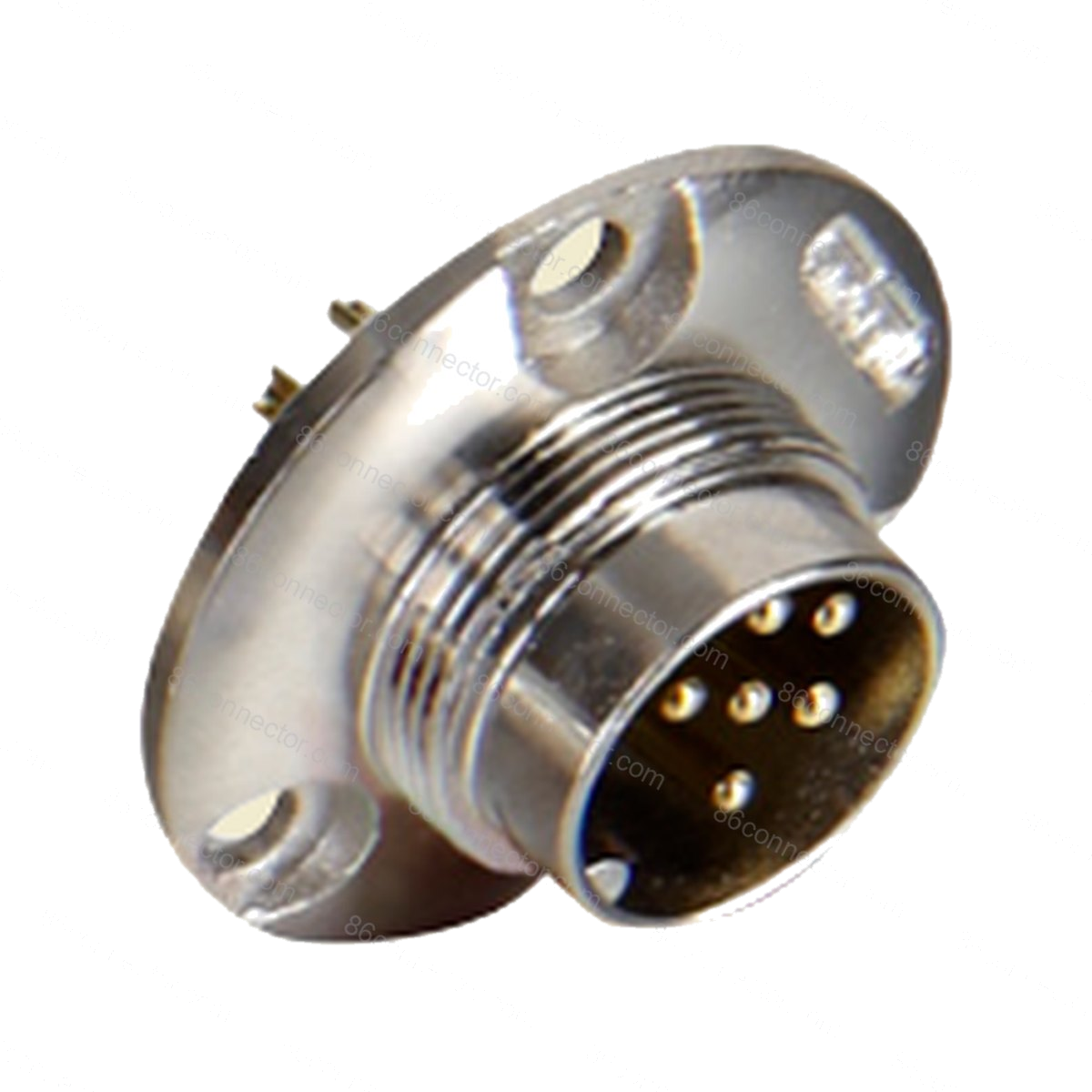

M16-E Panel front mount male socket/IP65
View M Series series page →Engineering reply within 24 hours. Drawing confirmation recommended before release. Need CAD, plating, photos, or reports — include target OEM PN in the RFQ.
2 · Product data drawings

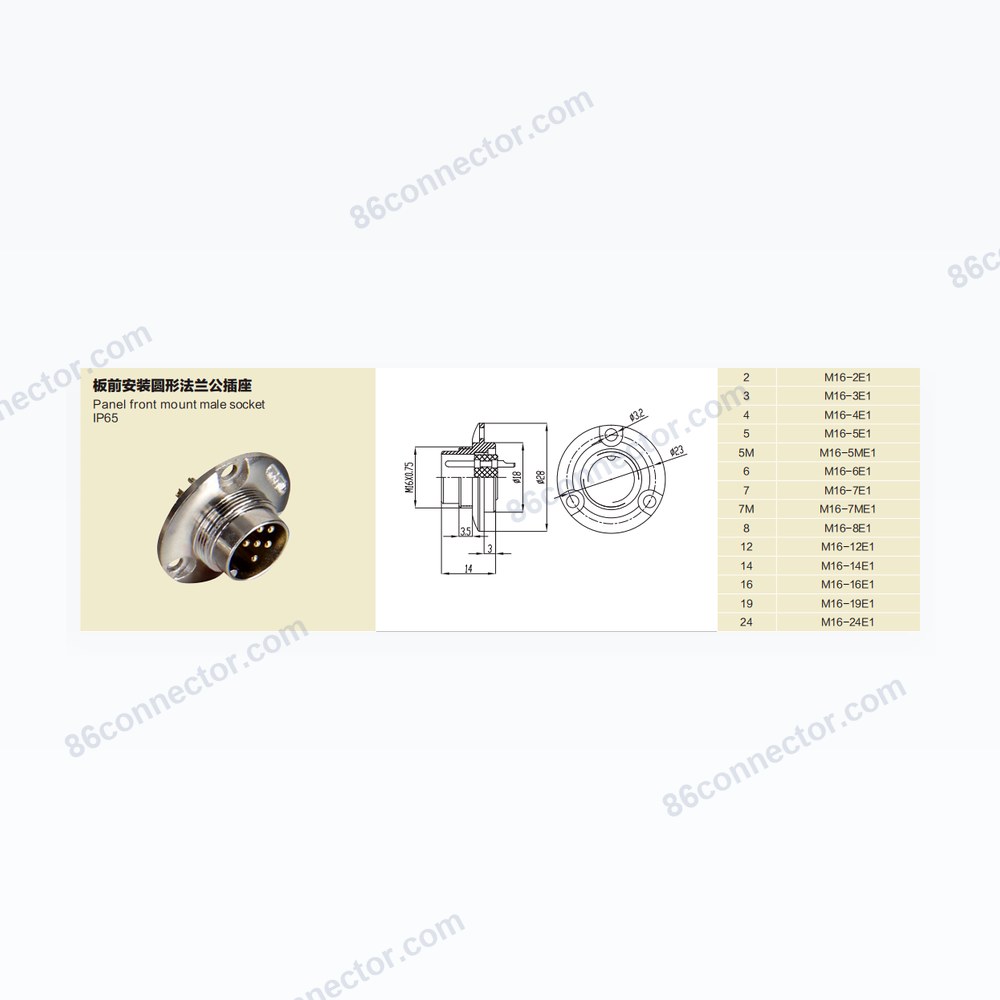

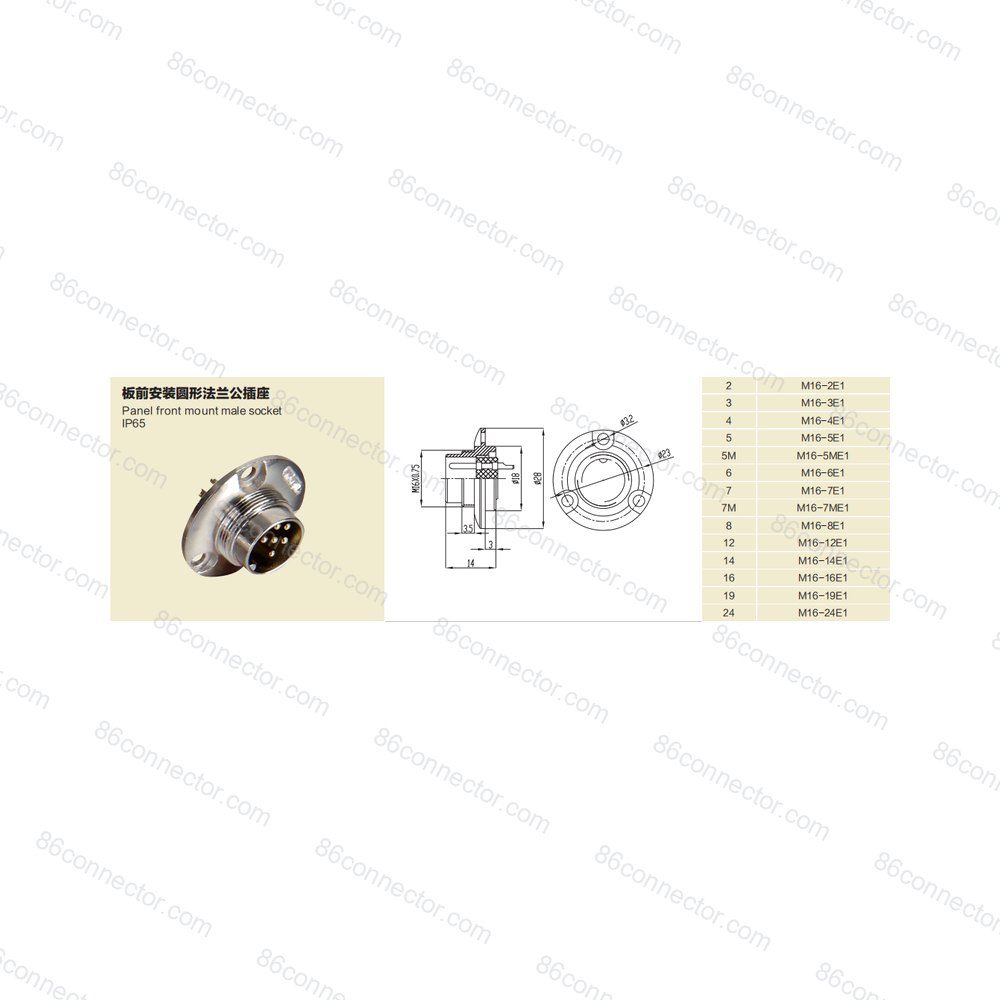

Outline, pinout, and dimension figures. Confirm against your released drawing before production order.
3 · Shipping & packaging
All packing and shipment are executed by 86connector Shenzhen warehouse (Shenzhen warehouse — unified dispatch). Shenyang plant is manufacturing capability background only when listed. Batch photos available on request with order confirmation.
| Lead time | 2–4 weeks typical (stock items faster) |
| MOQ | Standard pack — RFQ for small lots |
| Packaging | Export carton + bag/tray |
| Fulfillment | 86connector Shenzhen warehouse — unified export dispatch |
4 · Specifications & reports
Engineering parameters, downloadable documents, and quality reports. Missing files are fulfilled via RFQ within 24 hours — no fake downloads.

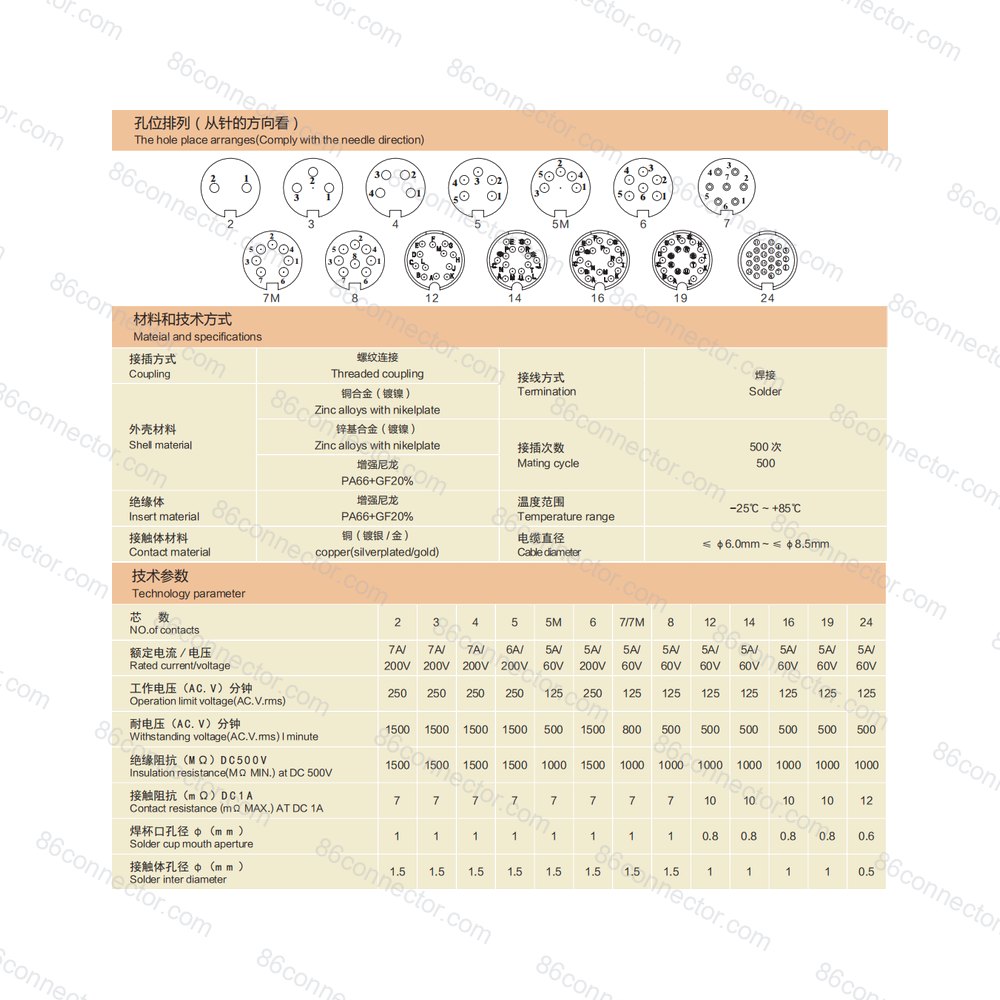

Technical specifications
Identity
| Part Number | M16-E |
| Series | M Series |
| Fulfillment | 86connector Shenzhen warehouse — unified export dispatch |
Mechanical
| Shell Size | 16 |
| Product Type | Receptacle |
| Coupling / Mount | Flange mount |
Electrical
| Gender | Male |
Environment
| IP Rating | IP65 |
Other
| Lead Time | 2–4 weeks typical (stock items faster) |
| MOQ | Standard pack — RFQ for small lots |
| Packaging | Export carton + bag/tray |
Documents
Datasheets and drawings ship with the engineering pack for M16-E. Request below — typical reply within 24 hours.
Quality & test reports
Lot/type test and compliance files. Unpublished items return via RFQ.
Same series · shell 16. Confirm insert / gender against your drawing before order.
