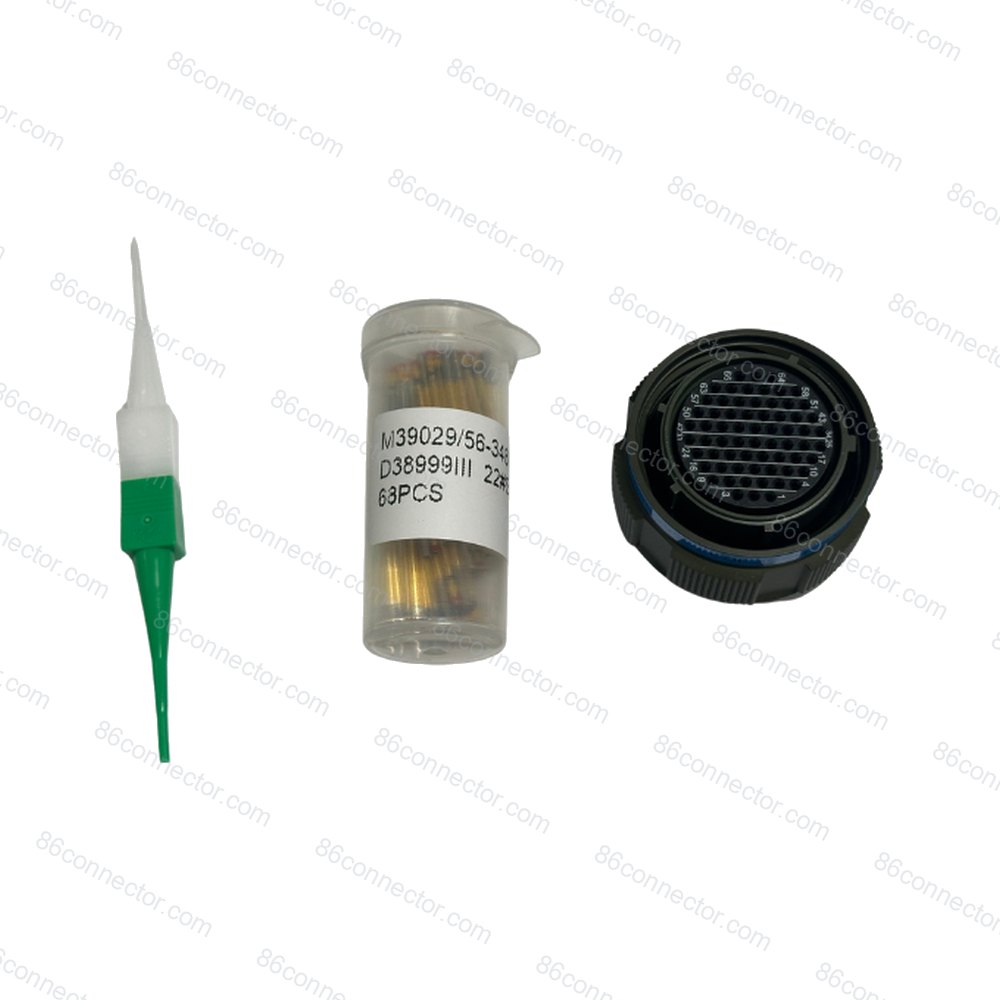

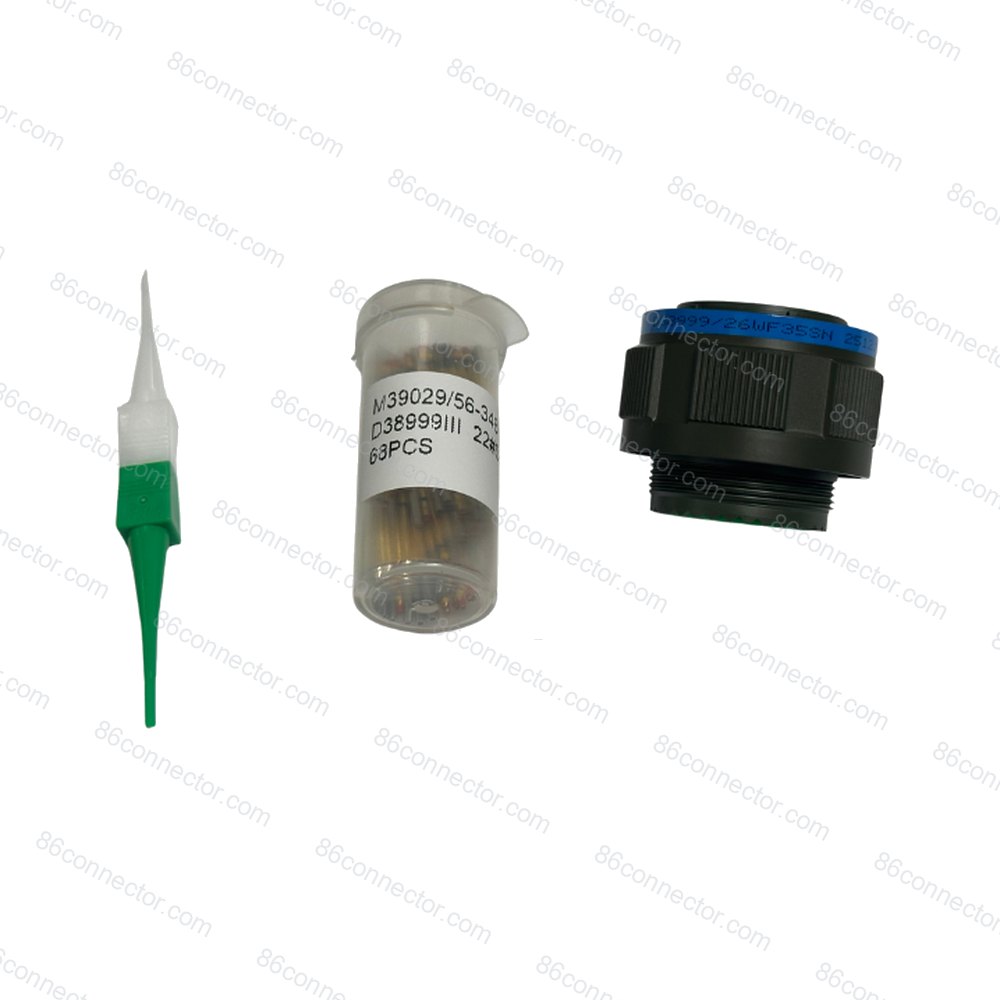

Watermarked studio view. Click image to enlarge. Use thumbs for product / drawing roles.
Product
Representative series photo — confirm exact dash, plating, and keying against your drawing before order.
Product video
D3899926WF35SN
D3899926WF35SN — 22x #22D, Socket, Shell 19
View D38999/26 Series (MIL-DTL-38999 III, Straight Plug) series page →Engineering reply within 24 hours. Drawing confirmation recommended before release. Need CAD, plating, photos, or reports — include target OEM PN in the RFQ.
2 · Product data drawings
Outline, pinout, and dimension figures. Confirm against your released drawing before production order.
3 · Shipping & packaging
All packing and shipment are executed by 86connector Shenzhen warehouse (Shenzhen warehouse — unified dispatch). Shenyang plant is manufacturing capability background only when listed. Batch photos available on request with order confirmation.
| Lead time | 4–8 weeks typical (confirm on RFQ) |
| MOQ | Project MOQ — RFQ |
| Packaging | Export carton + protective tray (standard) |
| Fulfillment | 86connector Shenzhen warehouse — unified export dispatch |
| Manufacturing base | Shenyang plant (capability background only) |
4 · Specifications & reports
Engineering parameters, downloadable documents, and quality reports. Missing files are fulfilled via RFQ within 24 hours — no fake downloads.
Technical specifications
Identity
| Part Number | D3899926WF35SN |
| Series | D38999/26 Series (MIL-DTL-38999 III, Straight Plug) |
| Standard | MIL-DTL-38999 Series III |
| Spec | D38999/26 (MIL-DTL-38999 III, Straight Plug) |
| Compatible With | Amphenol TV / D38999 Series III straight plug |
| 86connector Family | J599/26WF35SN |
| Suggested 86connector PN | J599/26WF35SN |
| Mapping Rule | D38999/* → J599/* |
| Map Confidence | High |
| Cross-Ref Note | FFF candidate — confirm shell, insert, plating & keying against drawing before order. |
| Supply Mode | Shenzhen warehouse · factory-backed · quote-built |
| Manufacturing base | Shenyang plant (capability background only) |
| Fulfillment | 86connector Shenzhen warehouse — unified export dispatch |
| Origin | Shenyang plant capability (background) · fulfilled from Shenzhen warehouse |
Mechanical
| Shell Size | 19 |
| Product Type | Plug |
| Mating Cycles | 500 min |
| Finish | Olive Drab Cadmium, -65°C to +175°C, Salt Spray 500h |
Electrical
| Contacts | 22 contacts |
| Contact Layout | 22x #22D |
| Insert Arrangement | 35 |
| Gender | Socket contacts |
| Contact Type | Socket |
Environment
| IP Rating | IP67 (mated) |
| Typical Applications | High-vibration aerospace plugs |
Other
| Lead Time | 4–8 weeks typical (confirm on RFQ) |
| MOQ | Project MOQ — RFQ |
| Packaging | Export carton + protective tray (standard) |
Documents
Datasheets and drawings ship with the engineering pack for D3899926WF35SN. Request below — typical reply within 24 hours.
Quality & test reports
Lot/type test and compliance files. Unpublished items return via RFQ.
Cross-Reference & Interchange
Form, fit, and function candidate mapping for MIL-SPEC programs. Confirm shell, insert, plating and keying against your drawing before release.
| This Part Number | D3899926WF35SN |
| Suggested 86connector PN | J599/26WF35SN (High confidence) |
| Mapping Rule | D38999/* → J599/* |
| Standard | MIL-DTL-38999 Series III |
| Western / OEM Families | Amphenol TV / D38999 Series III straight plug |
| Typical Use | High-vibration aerospace plugs |
| Note | FFF candidate — confirm shell, insert, plating & keying against drawing before order. |
